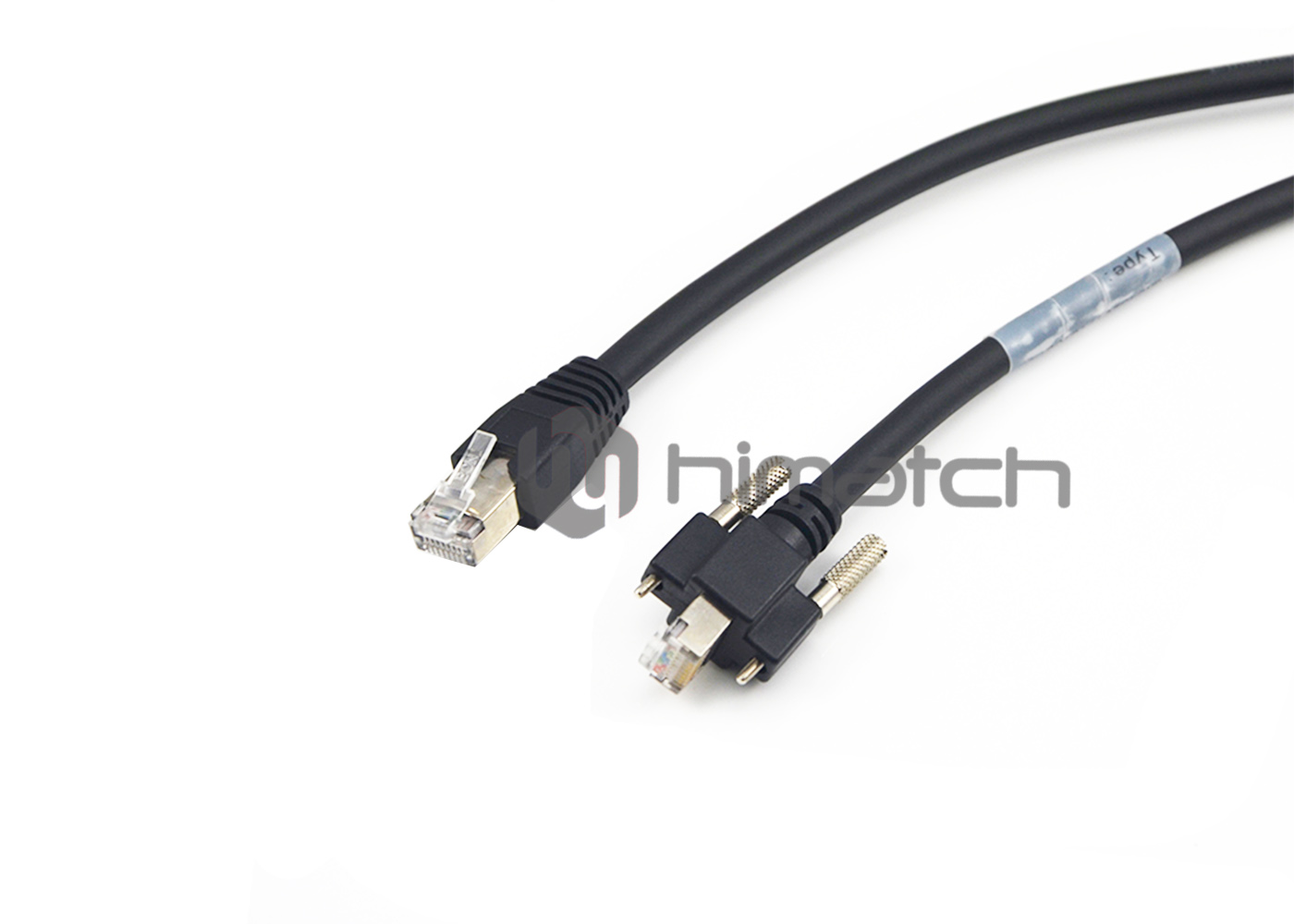

Flexible Twisted 90 Degree Industrial Ethernet Cat5e RJ45 to RJ45 Cable with Screw Lock for Drag Chian REACH Compliant

Product Categories
Shenzhen Himatch Technology Co., Ltd.
Contact Now

Flexible Twisted 90 Degree Industrial Ethernet Cat5e RJ45 to RJ45 Cable with Screw Lock for Drag Chian REACH Compliant

  • 1
  • 2

Brand Name : Himatch or OEM

Model Number : CX-IE-RJ45-RJ45-0500K

Certification : UL/ CSA , ISO

Place of Origin : China

MOQ : 30pcs

Price : USD15-20

Payment Terms : T/T

Supply Ability : 10000pcs /Month

Delivery Time : 15 working days

Packaging Details : PE bag, paper box, carton

Interface 1 : industrial cat5e cable

Cable : 4 pairs

Conductor : Tinned copper stranded

Jacket : PUR / PVC

Voltage : 30V

Length : 3m

Waterproof : IP67

Contact Now

Ethernet cable 5e RJ45 To RJ45 Flexible PVC cable 5m EtherCAT System

Description:

Himatch’s Industrial Etherent CAT cable series are constructed of plenum rated CAT5e stranded double shielding cable with AMP RJ45 connector at each end, Robust PVC molding offered outstanding quality, durability, and high performance for industrial FA site.

Flexible Twisted 90 Degree Industrial Ethernet Cat5e RJ45 to RJ45 Cable with Screw Lock for Drag Chian REACH Compliant

Specification:

Standard Gigabit Ethernet Transmit Speed Max 1000Mbs
Installation mode Dynamic/Static Install radius (Min)

Static: 25mm

Dynamic: 50mm
Wire gauge 4Px26AWG Cable OD 6.5mm
Jacket Material PVC Lift time 8-10 millions
Operation Temperature -25°C ~+ 80°C Max Length 15m

Features

  • Overall foil and braid shielded provides EMI/RFI protection

  • Shielded pairs provide superior signal integrity

  • Low noise and good performance in skew

  • Feature UV and chemical resistant PUR Jackets

  • RoHS and REACH compliant

Application

  • Industrial Ethernet
  • FA site
  • Harsh Environment Applications
  • Machine Vision
  • Sensor and actuators

Customized Connection Type:

RJ45 molding type straight

RJ45 molding type straight with screw

RJ45 molding type Up angle with screw

RJ45 molding type Down angle with screw

RJ45 molding type Twist 90 degree with screw

Flexible Twisted 90 Degree Industrial Ethernet Cat5e RJ45 to RJ45 Cable with Screw Lock for Drag Chian REACH Compliant
