Mini Camera Link AIA Standard Chain Flex SDR to SDR Vision Cable
Description:
Himatch’s full shielding long camera link cable built with full double shielded cable, high quality SDR connector on each end,low skews cable, robust PVC or TPE molding, to ensure the cable outstanding for durable and performance. widely used in machine vision inspection, industrial CCD surveilance,
Specification:
SDR to SDR Camera link cable China manufacturer.Himatch's construct the cable of robotic cable with HONDA® SDR (Shrunk Delta Ribbon) 26pos at both end.They offer outstanding quality and high performance for industrial CCD camera with SDR port.
| Standard | Camera Link | Transmit Speed Max | 2.04Gbps, |
| Installation mode | Dynamic /Static | Install radius (Min) | 75mm |
| Wire gauge | 28AWG | Cable OD | 9.1mm |
| Jacket Material | PVC | Connector | SDR-SDR |
| Operation Temperature | -20°C ~+ 80°C | Max Length | 15m |
Features
Real-time signals transmission,low latency
100% electronically tested for functionality
Low noise and good performance in skew
Shielded pairs provide superior signal integrity
Overall foil and braid shielded provides EMI/RFI protection
Flexible and reliable cable
Application
Industrial imaging
Machine Vision system
Industrial camera
Scanning on pipelining
Products testing
Image recognition
Factory automation
Note:
The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
Product Tags:
|
|

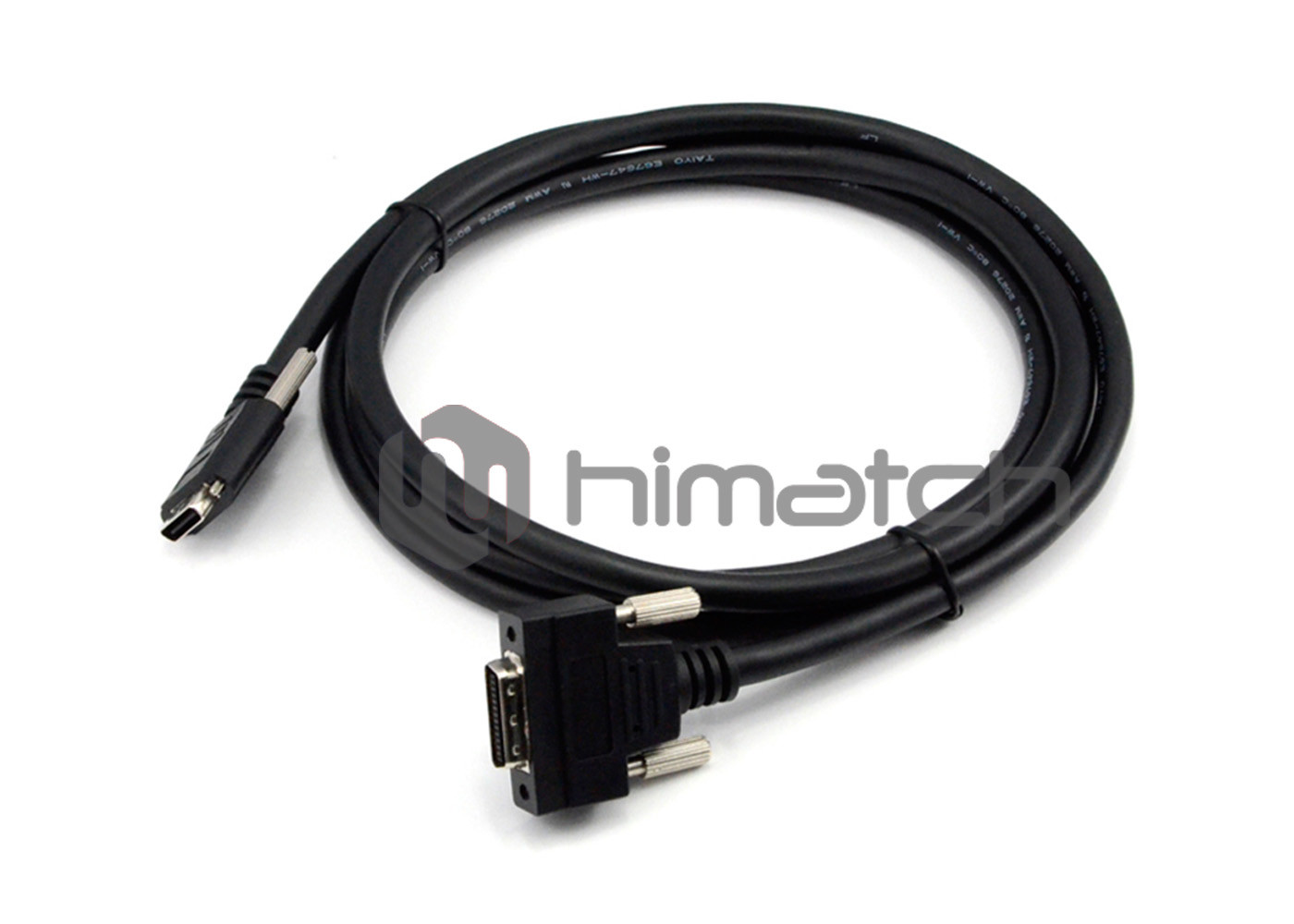

Mini Camera Link AIA Standard Chain Flex SDR to SDR Vision Cable Images
|
